Let's Get Down to the Nitty-Gritty of Drone Photogrammetry for Large Scale 3D Scanning
Wondering how to recreate a grand old railroad station or design a customized Monopoly board featuring your hometown's architectural gems? Drones and photogrammetry techniques could be your secret weapons!
With a drone in your arsenal, you can capture the likeness of buildings and other big objects that traditional methods might struggle with. And, believe it or not, we here at [nastideplasy] have just the tutorial you need to master drone photogrammetry!
So how does it work? Essentially, it's similar to any photogrammetry process you may have encountered, but drones replace conventional cameras. To create a 3D model, gather a plethora of overlapping images from varying angles and heights around the subject. Stitch these images together to create a 3D mesh - voila!
But to ensure a successful reconstruction, you'll need enough overlapping photos for your software to work its magic. While smaller objects may require a steady hand, a pair of control sticks become the necessities for a fantastic scan of a house.

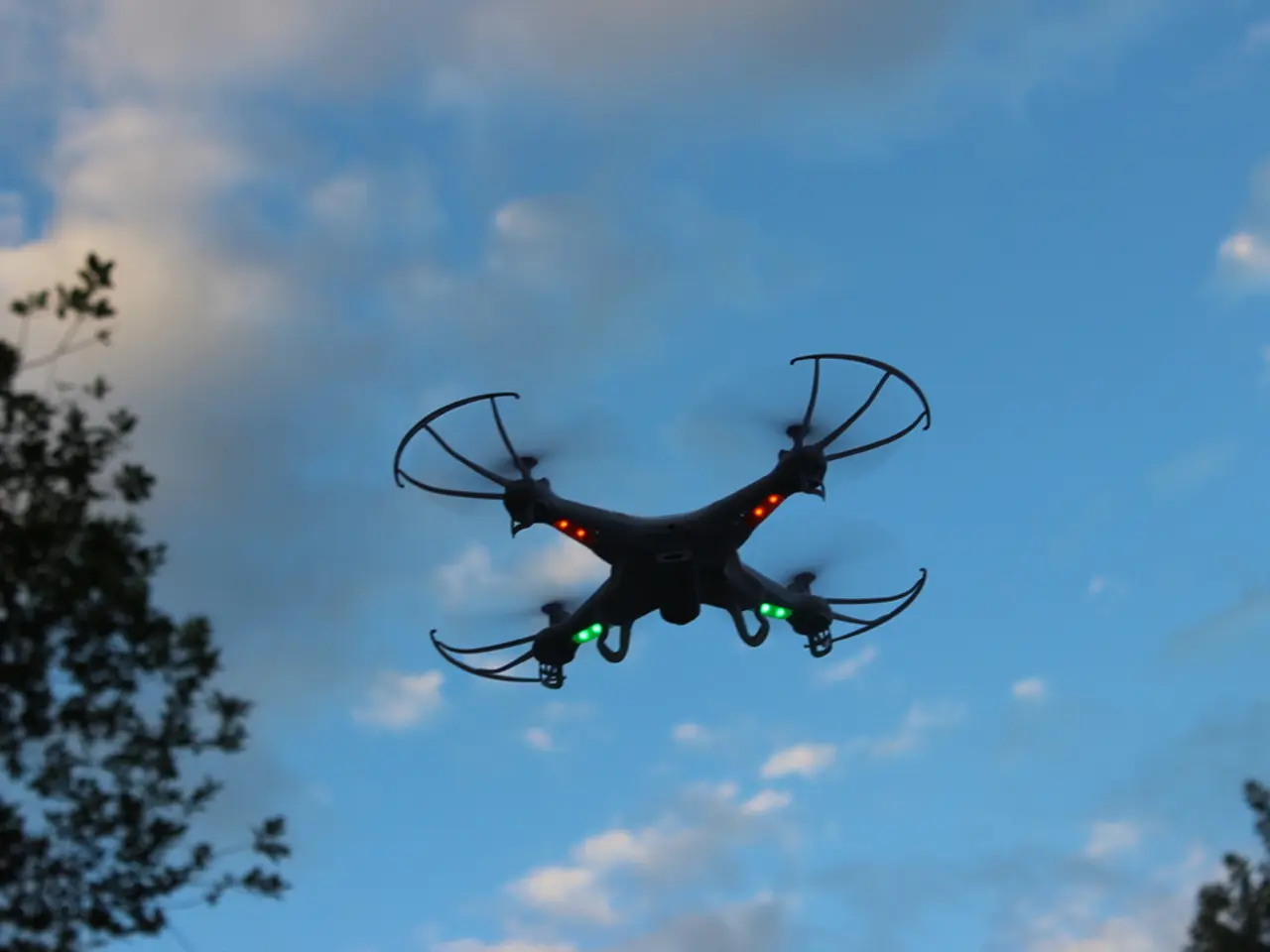

Don't be fazed by challenges such as lighting. Although direct sunlight and deep shadows can hamper image processing, overcast days are your best bet for getting quality results. And be sure to abide by all legal and safety regulations when flying your drone around the object.
Now, for the software pieces, [nastideplasy] suggests using Autodesk, but open-source options like Meshroom have also proven to be stellar alternatives.
Here's a simplified breakdown of the process:
- Plan your drone flight meticulously, ensuring all necessary permits and compliance with local regulations.
- Fly the drone on a day with ideal lighting conditions (e.g., overcast).
- Capture plenty of overlapping images from various angles and heights, aiming for a 70% overlap or higher.
- Upload the images to Autodesk ReCap Photo or use Meshroom for processing and cleaning up your 3D mesh.
- Post-processing involves removing unwanted elements, filling gaps, and scaling the model before printing or further use.
For improved accuracy, consider combining drone data with other scanning methods like LiDAR and utilizing 360° cameras or helmet-mounted cameras for additional site documentation. Furthermore, AI-enhanced processing can aid in scanning complex or textured surfaces.
Happy droning, and remember - with drone photogrammetry, the possibilities are endless!
while delving into advanced 3D scanning projects like recreating a grand old railroad station or designing a customized Monopoly board, don't forget about gadgets that can aid in the process. For instance, open-source technology, such as Meshroom, can serve as an alternative to expensive software solutions like Autodesk, especially when working with gadgets like drones for capturing images.
